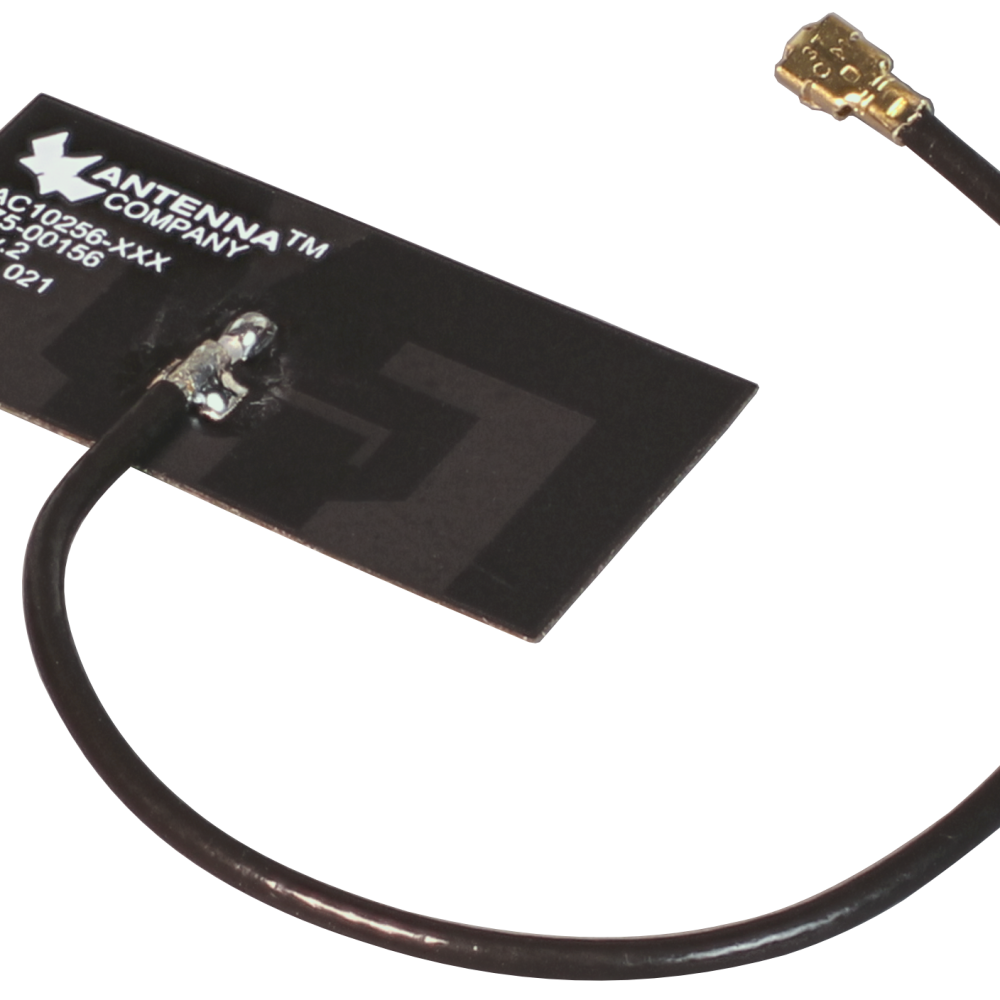

Triple band 2G/5G/6G Wi-Fi/ISM Cabled Flex PCB Antenna
AC10256-100
Mounting type: Embedded
Frequency band support: [2400 – 2500MHz], [5100 – 5900MHz], [5900 – 7150MHz]
Radiation pattern: Omndirectional
Dimensions: 14.2 x 28.6 mm
Description & specifications
The AC10256-100 is a compact high efficiency tri-band Wi-Fi7 flex PCB antenna optimized for embedded designs. Its compact size facilitates placement in devices with high antenna counts for increased throughput purposes.
The antenna has been designed to support a wide variety of WLAN/Bluetooth and ISM applications: Consumer broadband CPE (gateways/routers), Smart home networking, Asset Tracking, Sensing and Remote monitoring.
- Compact high efficiency antenna (75% peak efficiency)
- Triple band support 2400-2500MHz, 4900-5900MHz, 5900-7125 MHz .
- Flexible PCB for integration in end devices with non-conformal shapes
- Available in multiple cable lengths (50mm, 100mm, 150mm, 200mm, 250mm, 300mm and 350mm) for optimized antenna placement.
- Self-adhesive mount for ease of integration
- RoHS and REACH compliant
