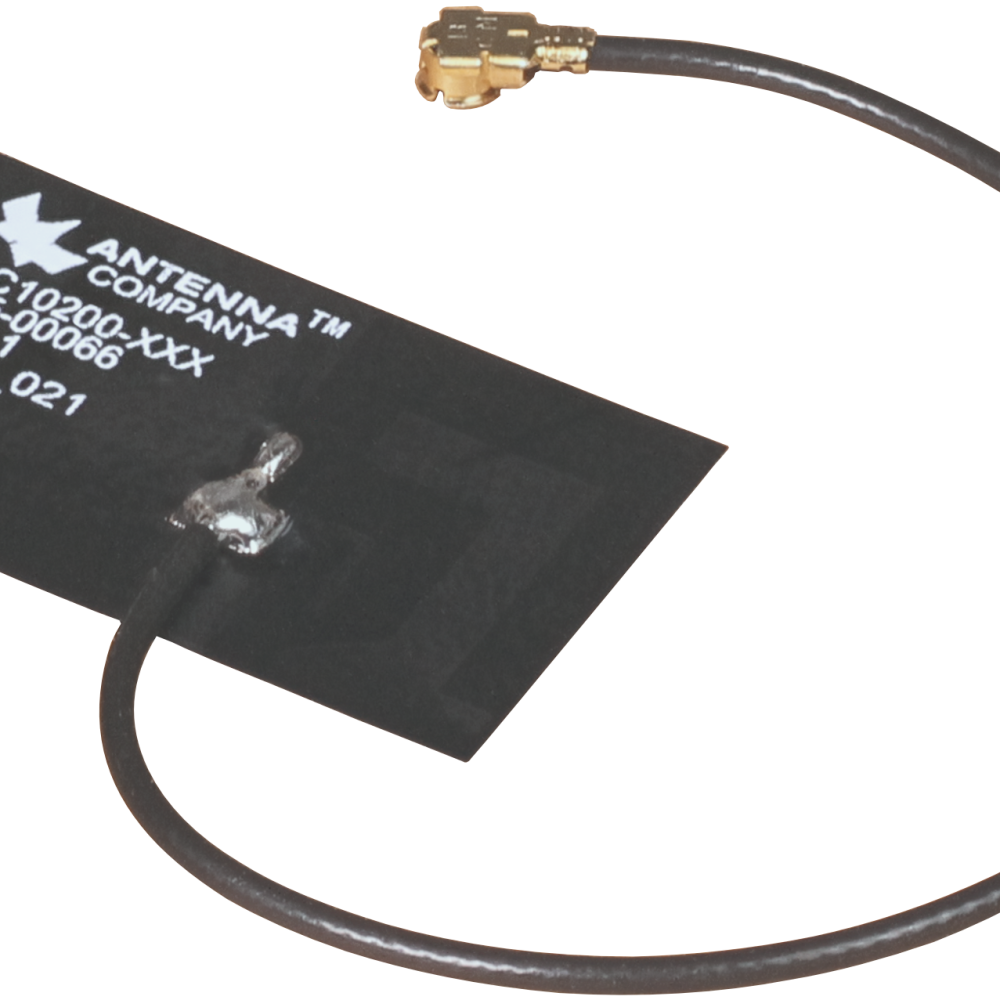

Single band 2.4GHz BT/ISM/Wi-Fi Cabled Flex PCB Antenna
AC10240-100
Mounting type: Embedded
Frequency band support: [2400 – 2500MHz]
Radiation pattern: Omndirectional
Dimensions: 16.2 x 26.2 mm
Description & specifications
The AC10240-100 is a compact high efficiency 2400-2500 MHz flex PCB antenna optimized for embedded designs. Its compact size facilitates placement in devices with high antenna counts for increased throughput purposes.
The antenna has been designed to support a wide variety of WLAN/Bluetooth and ISM applications: Consumer broadband CPE (gateways/routers), Smart home networking, Asset Tracking, Sensing and Remote monitoring.
- Compact high efficiency antenna (75% peak efficiency)
- Clean resonance with no unwanted out of band response.
- Flexible PCB for integration in end devices with non-conformal shapes
- Available in multiple cable lengths (50mm, 100mm, 150mm, 200mm, 250mm, 300mm and 350mm) for optimized antenna placement.
- Self-adhesive mount for ease of integration
- RoHS and REACH compliant
