WiFi Tri-Band Embedded Adhesive Flexible Printed Circuit (FPC) Antenna

AC10256

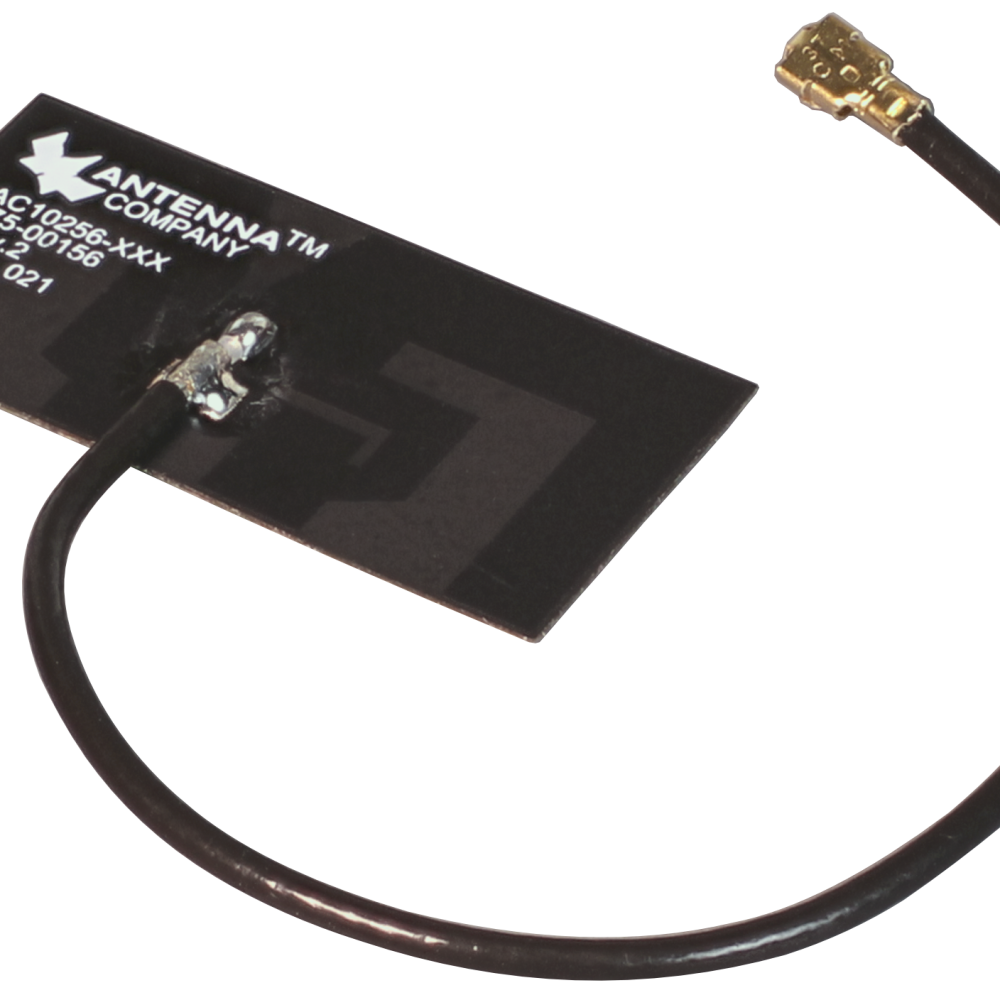

The AC10256 tri-band flexible printed circuit (FPC) WiFi antenna supports the 2.4 GHz, 5GHz and 6 GHz WiFi bands (2.4-2.5 GHz, 5.15-7.125 GHz). Flexibility and a peel-and-stick adhesive backing make the AC10256 antenna easy to mount in unique and custom enclosures. Connection is made to the radio via a 1.13mm coaxial cable terminated in an MHF1/U.FL-type plug connector. Various cable length options are available (See Ordering Information).

Categories: Adhesive Mount, Embedded/Internal, Tri-Band WiFi, Wi-Fi / Bluetooth

Tags: 1.13mm Coax, 2.4 GHz Band, 29.2×14.5x.27mm, 5 GHz Band, 6 GHz Band, 802.11ac, 802.11ax, 802.11b, 802.11be, 802.11g, 802.11n, BLE, Bluetooth, FPC, Ground Plane Independent, IEEE 802.15.4, Linear Polarization, MHF1-Type, Omnidirectional, Plug (Male), U.FL-Type, Wi-Fi, WiFi 4, WiFi 5, WiFi 6, WiFi 6E, WiFi 7, WLAN

Features

Very high efficiency
Ground plane independent
Compact
- 29.2 mm x 14.5 mm x 0.27 mm
Performance at 2.4 GHz to 2.5 GHz
- VSWR: 2.0
- Peak Gain: 2.6 dBi
- Efficiency: 93%
Performance at 5.15 GHz to 5.85 GHz
- VSWR: 1.8
- Peak Gain: 6.1 dBi
- Efficiency: 89%
Performance at 5.925 GHz to 7.125 GHz
- VSWR: 2.1
- Peak Gain: 6.7 dBi
- Efficiency: 87%
MHF1/U.FL compatible plug termination

Applications

WiFi/WLAN Coverage
- WiFi 7 (802.11be)
- WiFi 6E (802.11ax)
- WiFi 6 (802.11ax)
- WiFi 5 (802.11ac)
- WiFi 4 (802.11n)
- 802.11b/g
2.4 GHz ISM applications
- Bluetooth®
- ZigBee®
U-NII bands 1-8
Internet of Things (IoT) devices
WLAN Gateways/Routers
Fixed Wireless Customer Premise Equipment (CPE)
