Single band 6G Wi-Fi​ Cabled Flex PCB Antenna
AC10600-100 - Main image
use case #1
use case #2
use case #3

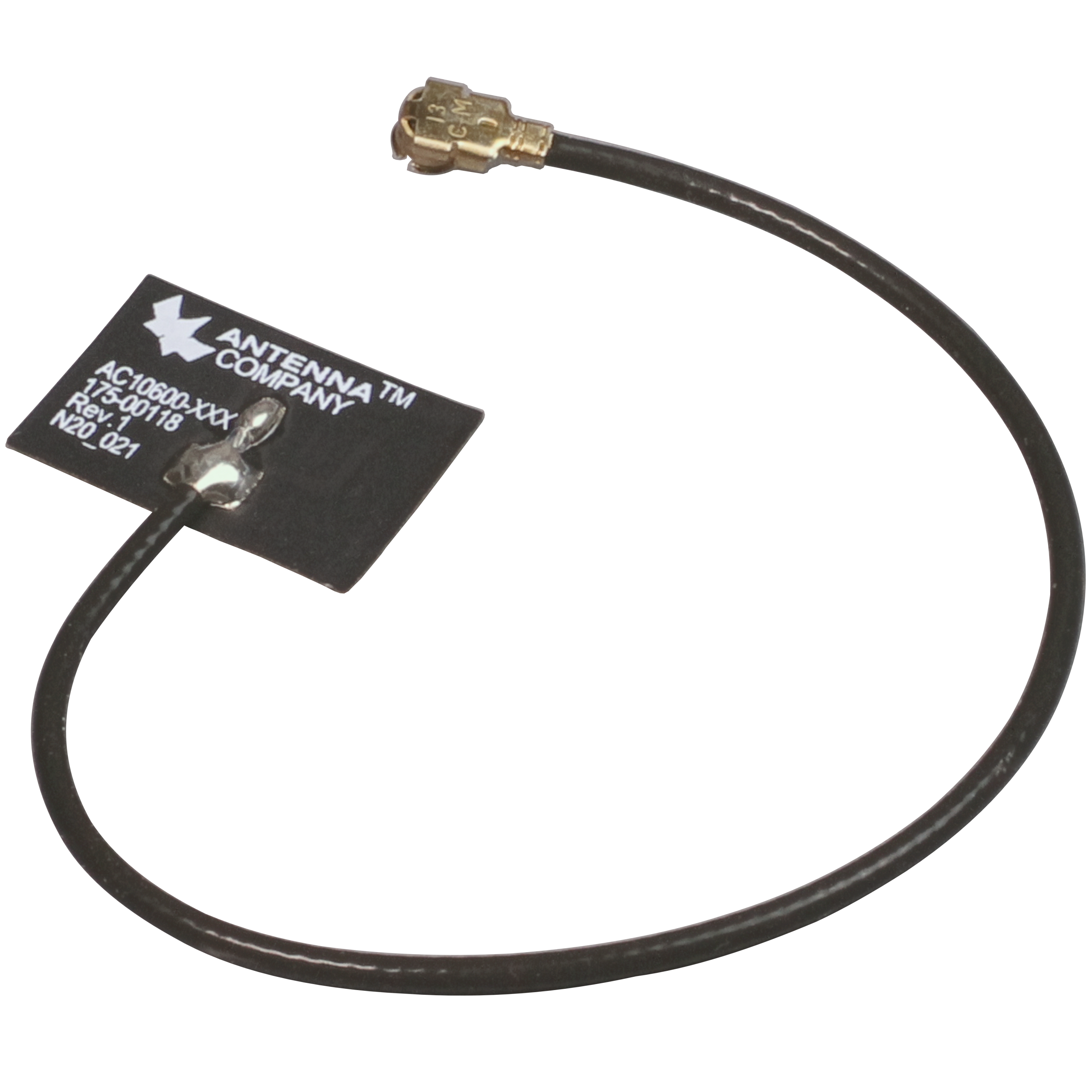

Single band 6G Wi-Fi​ Cabled Flex PCB Antenna

AC10600-100
Mounting type: Embedded
Frequency band support: [5900-7150MHz]
Radiation pattern: Omndirectional
Dimensions: 9.3 x 13.8 mm
Request more information

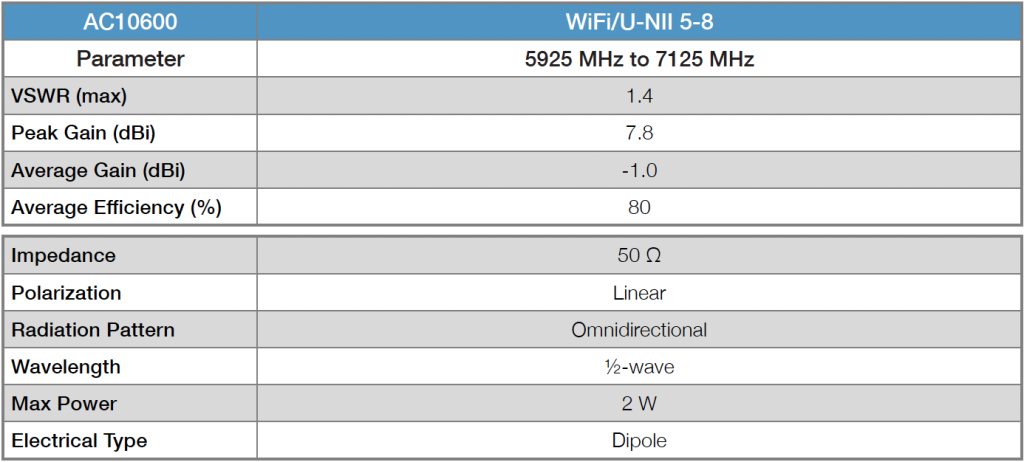

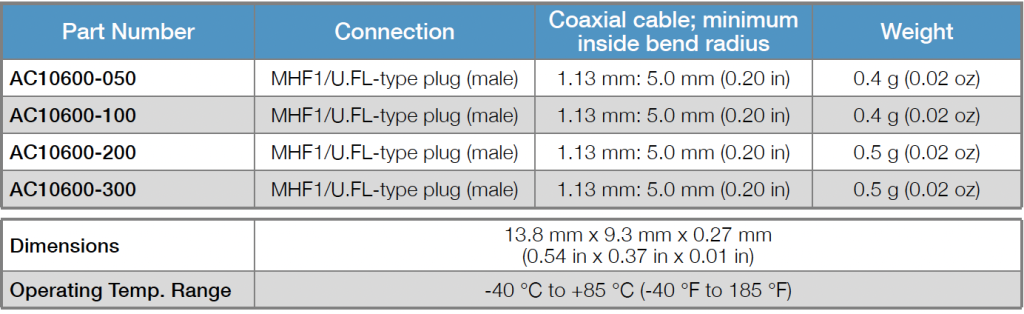

Description & specifications

The AC10600-100 is a compact high efficiency 6G flex PCB antenna optimized for embedded designs. Its compact size facilitates placement in devices with high antenna counts for increased throughput purposes.

The antenna has been designed to support a wide variety of WLAN/Bluetooth and ISM applications: Consumer broadband CPE (gateways/routers), Smart home networking, Asset Tracking, Sensing and Remote monitoring.

  • Compact high efficiency antenna (80% peak efficiency)
  • Broadband support 5900-7150 MHz .
  • Flexible PCB for integration in end devices with non-conformal shapes
  • Available in multiple cable lengths (50mm, 100mm, 150mm, 200mm, 250mm, 300mm and 350mm)  for optimized antenna placement.
  • Self-adhesive mount for ease of integration
  • RoHS and REACH compliant
