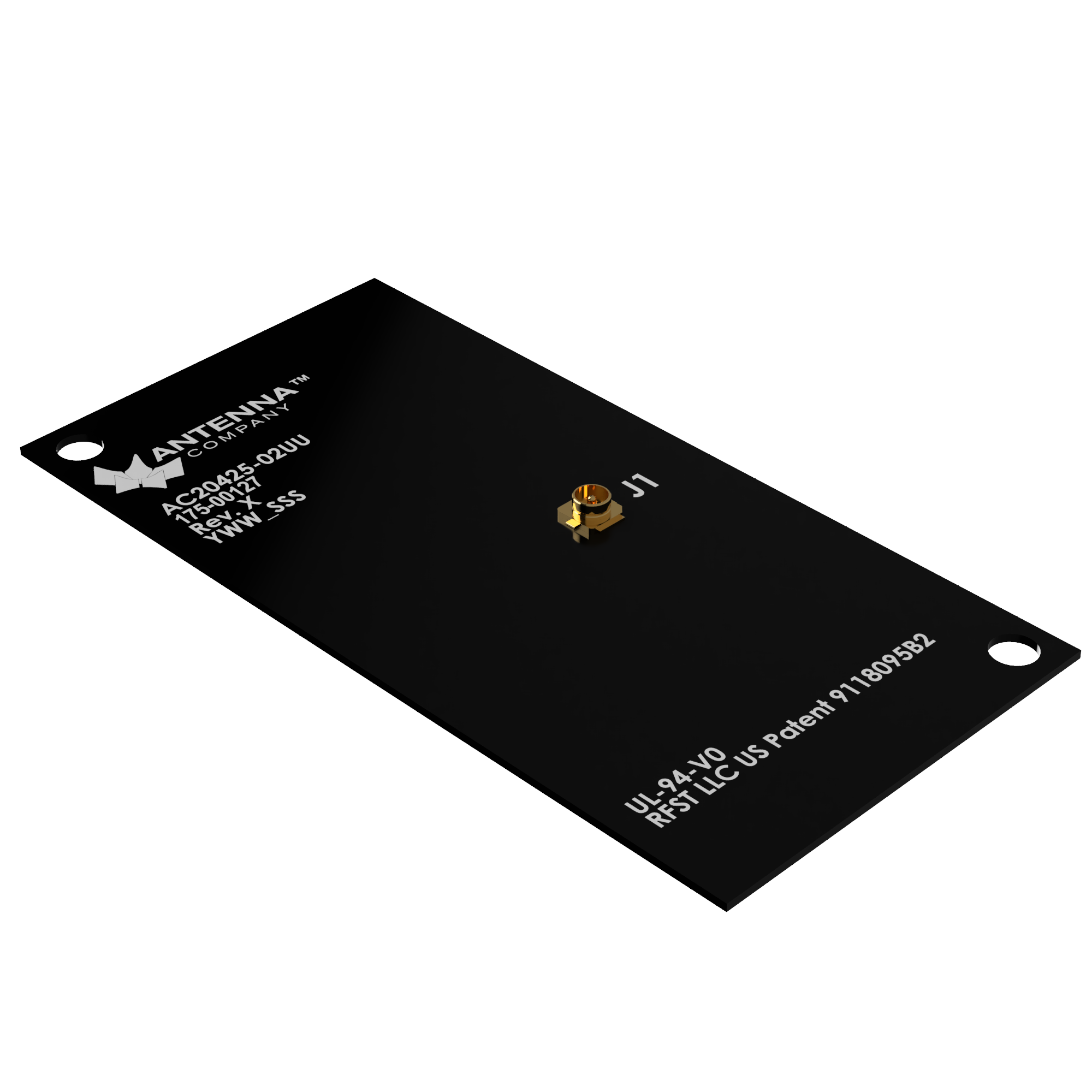

Broadband LTE 12kV RF Coupler/Antenna Isolator
AC20425-02UU
The AC20425-02UU is a broadband and ultra-low-loss RF (Radio Frequency) coupler. This antenna isolator is designed with a generic form factor suitable for use within the enclosure of most electric utility meters and AMI communications modules. ​
The 12kV electrical isolation enables safe routing of the RF signal from the NIC or wireless modem to a remote external antenna via a bulk-head connection in the meter base or body of the communications module​
The AC20425-02UU has been designed to provide high voltage isolation for external antennas used to extend wireless range in a wide variety of applications: Off network SMART Utility Meters, Residential & Commercial SMART Meters, LED Street Lighting and Substation monitoring.
Categories: Connector Mount, Embedded/Internal, RF Accessory, RF coupler, Terminal Mount
Tags: 4G, 5G, FR4, LTE, PCB, Plug (Male), RF Coupler, RF Isolator, SMA
Electrical isolation: 12kV
Features
- Low insertion loss <1.0dB at 698MHz​
- Broadband operation 698MHz – 2.7GHz​
- 12kV High Voltage electrical isolation​
- Standard U.FL input/output​
- UL 94V-0 coating​
- RoHS and REACH compliant
