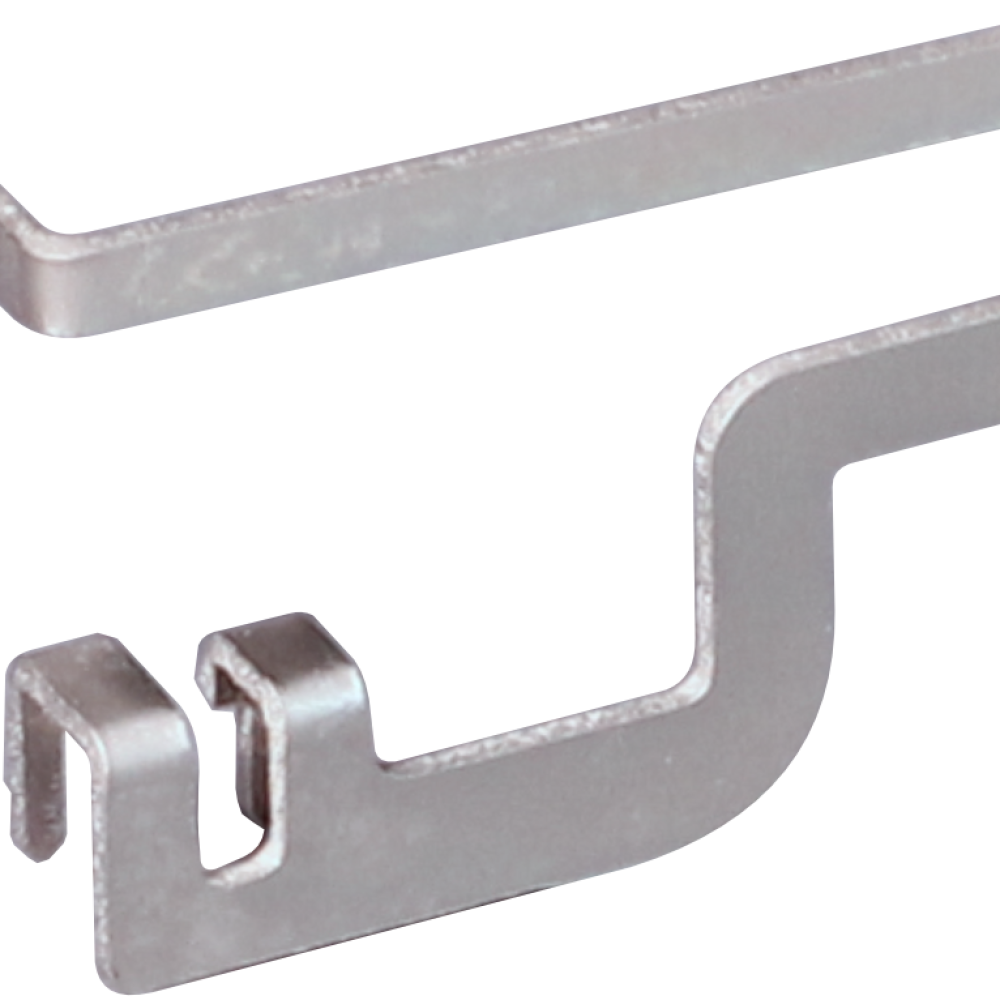

GNSS Embedded Corner-Mount Stamped Metal Antenna
AC30026-01
- GNNS bands supported
- 1561 MHz
- 1575 MHz
- 1590 MHz
- 1601 MHz

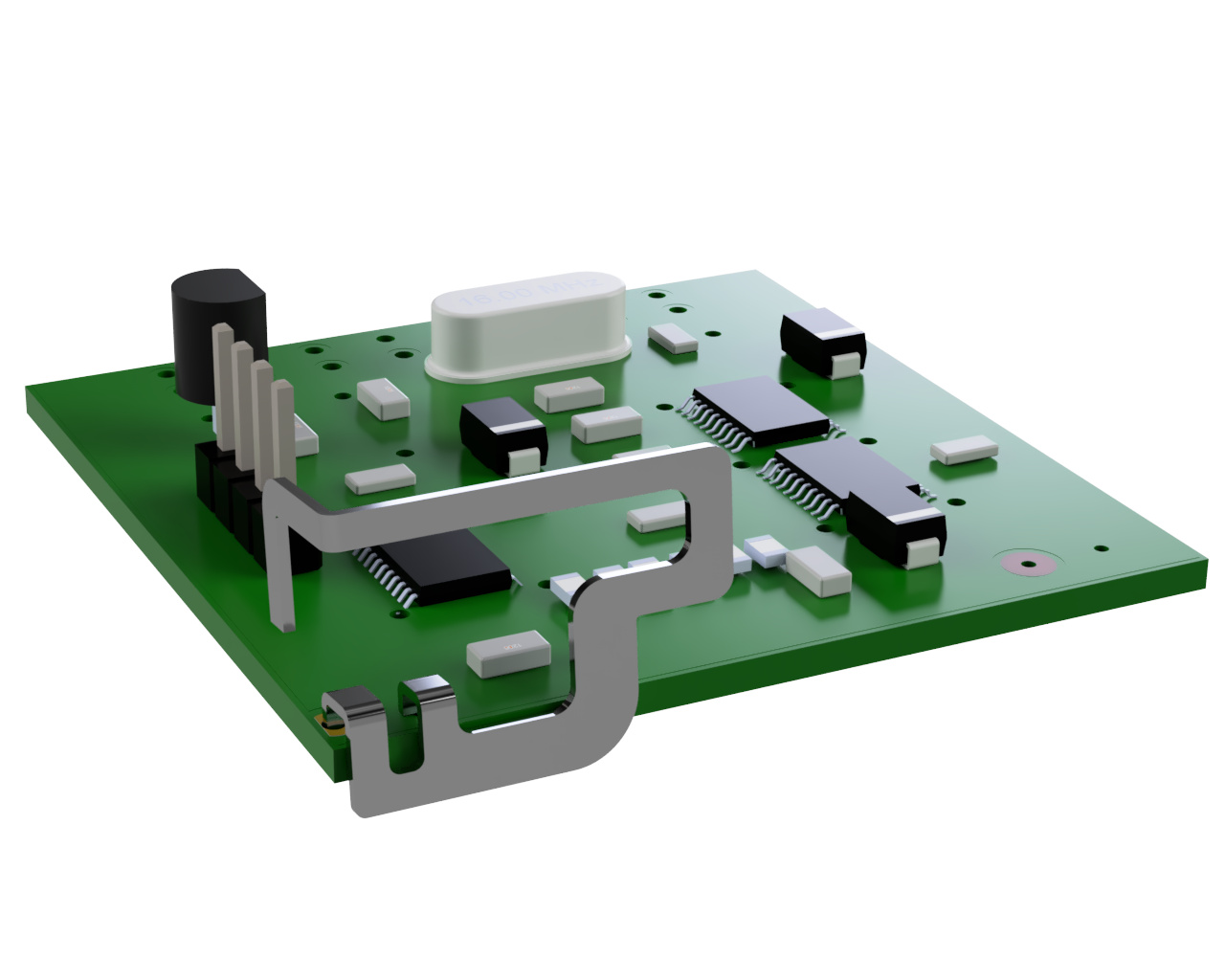

- Corner mount antenna to save PCB space
- Linear polarization for use in varying orientations
- Compact
- 18.6 mm x 12.7 mm x 7.0 mm
- Omnidirectional radiation pattern
- Through-hole mount for reflow- or hand-solder assembly
Categories: Embedded/Internal, GNSS/Navigation, GPS / GNSS, Through-Hole Mount
Tags: 18.5×12.7×7.0mm, Beidou, Compass, Corner-Fit, Galileo, GLONASS, GPS, Linear Polarity, Linear Polarization, Omnidirectional, Passive, Pin, QZSS, Stamped Metal
Features
- Global Navigation (GNSS)
- GPS L1
- Galileo E1
- GLONASS L1
- Beidou B1-BOC
- Beidou B1
- Beidou B1-2
- Beidou E1
- QZSS L1
- Timing Applications

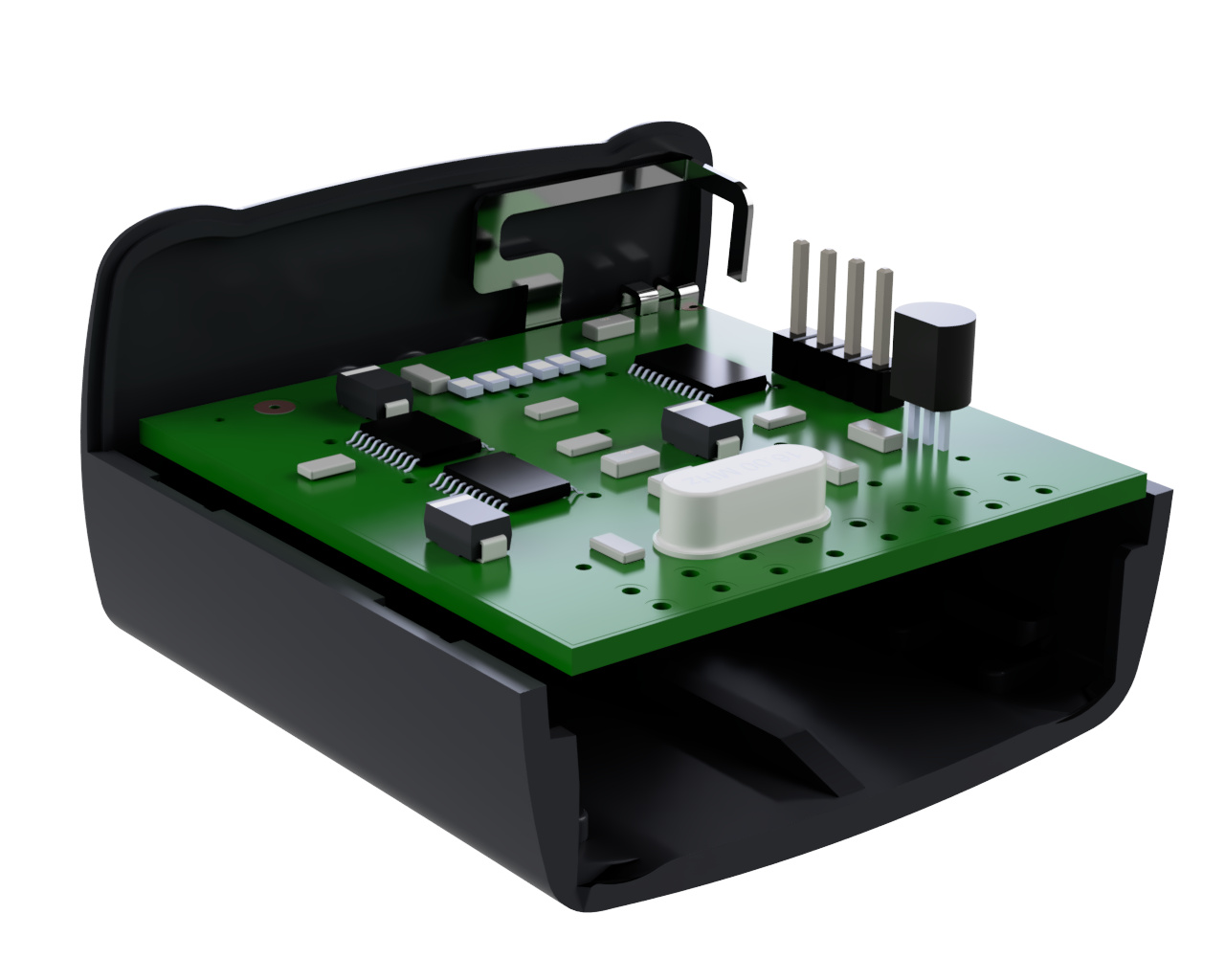

- OBD-II Modules
Specifications and Additional Information
Electrical specifications
Mechanical specifications
