GNSS Edge-Mount Metal-Stamped Antenna
AC30036-01
The AC30036-01 is a quasi-omni-directional antenna element operating in the GPS L1 (1.575GHz) and GLONASS G1 (1.601GHz) bands.

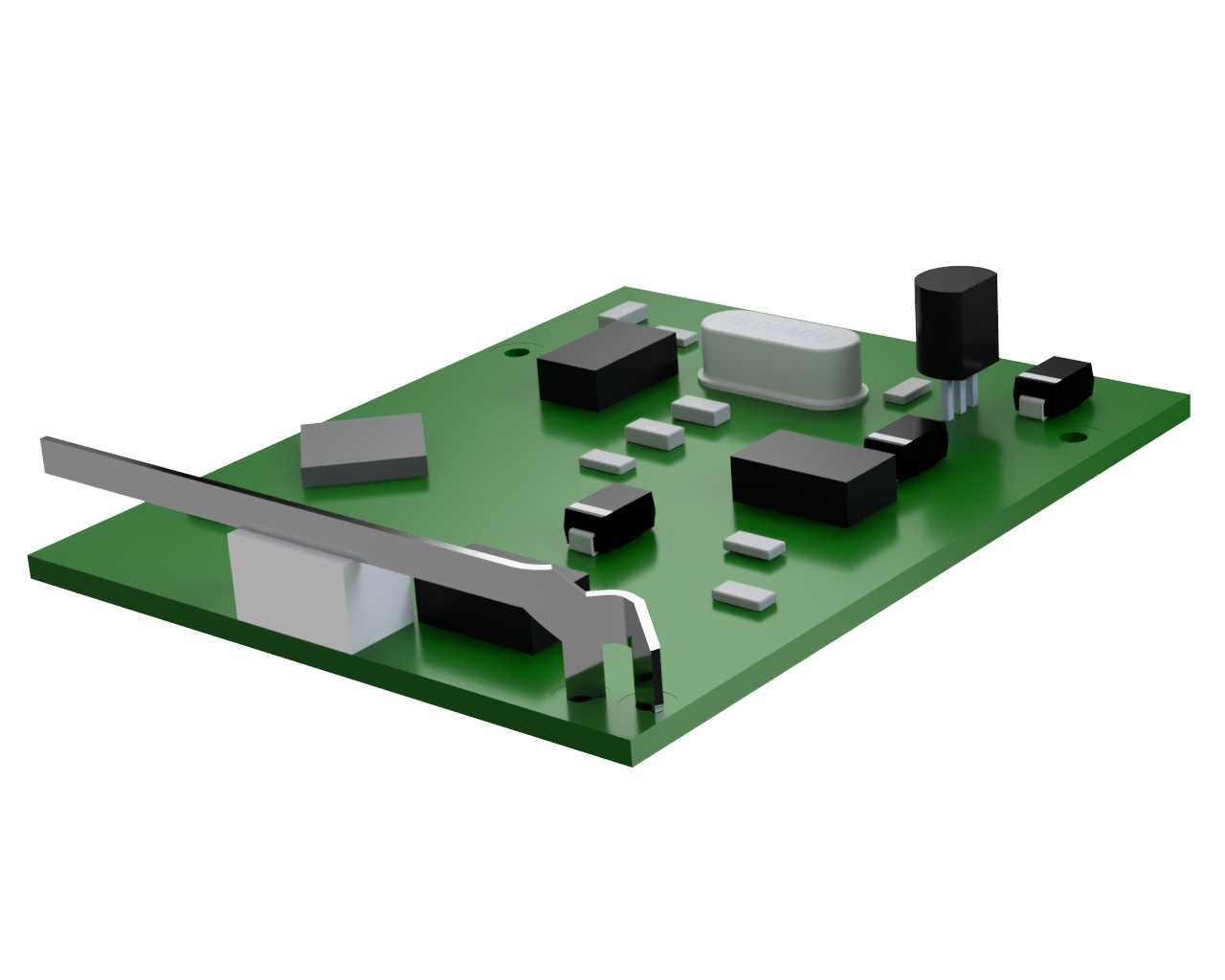

The antenna is ideal for edge PCB mounting and features excellent efficiency and impedance matching characteristics, providing optimal quality of service for satellite vehicle tracking.
Categories: Embedded/Internal, GNSS/Navigation, GPS / GNSS, Through-Hole Mount
Tags: 39.6×3.1×9.3mm, Beidou, Compass, Edge-Fit, Galileo, GLONASS, GPS, Linear Polarization, Omnidirectional, Passive, Pin, QZSS, Stamped Metal
Features
- GPS and GLONASS operation
- Edge mount to minimize the volume required for antenna integration
- Excellent embedded impedance matching
- Clean resonance to reduce coupling with other antennas that could be embedded in the end-device (e.g., a cellular antenna)
- RoHS and REACH compliant
