Wideband Cellular 5G/4G SMD Antenna
AC31700-01A
Mounting type: Embedded
Frequency band support: [698 – 960MHz], [1700 – 6000MHz]
Radiation pattern: Omndirectional
Dimensions: 13.3 x 41.0 x 3.0 mm
Description & specifications
The AC31700-01A is a high efficiency, 5G/4G wideband SMD antennas designed to operate on IoT devices with large or small ground planes.

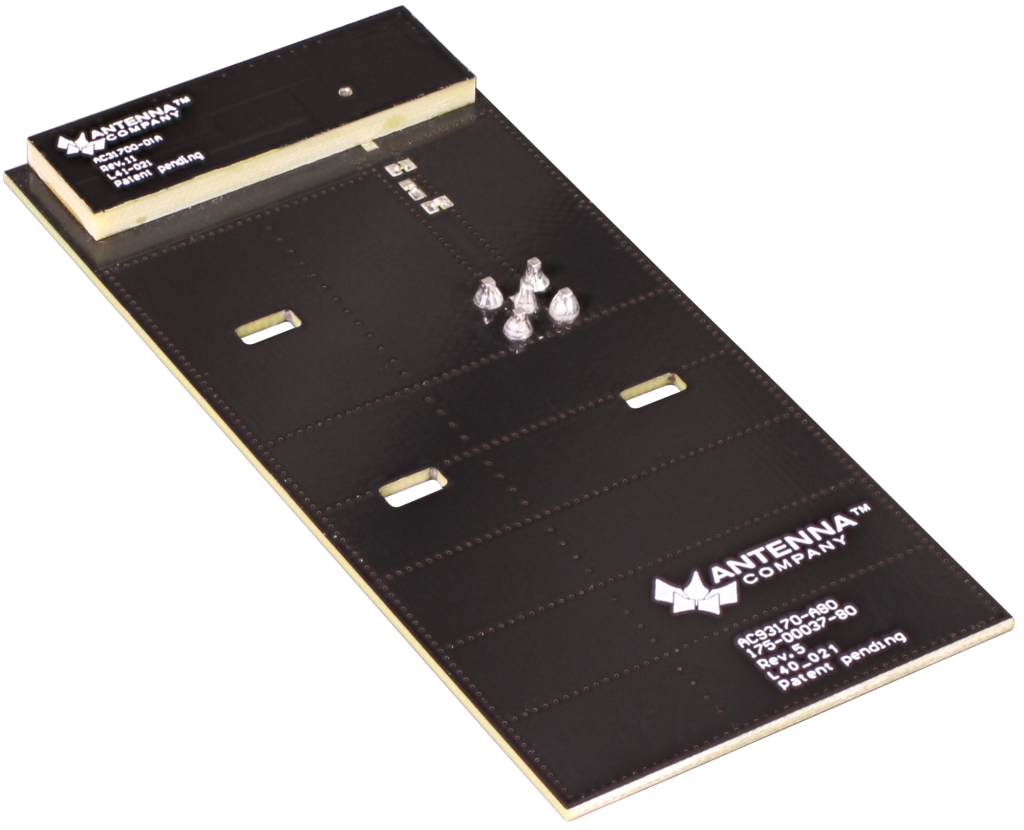

The AC31700-01A antenna has the unique feature of being compatible with a low-profile booster element AC31700-01B mounted directly beneath it on the rear side of the host printed circuit board. The use of a booster element allows antenna performance to be preserved on PCB boards with reduced ground plane lengths down to 50 mm.
The antenna has been designed to support a wide variety of cellular and NB-IoT applications: Asset Tracking, Smart Meters, Connected Health and Handheld Devices.
- High Efficiency Wideband Antenna covering 698 to 6000 MHz
- Outstanding performance in standalone configuration on host PCBs with ground plane lengths exceeding 80mm
- Dual configuration delivers 10% efficiency boost in applications with ground plane lengths ranging from 50mm to 80mm
- Surface mount device suitable for automated assembly (SMT process). Supplied on tape & reel
- RoHS and REACH compliant
