Universal External Antenna Extender for Smart Meters
AC91007-01

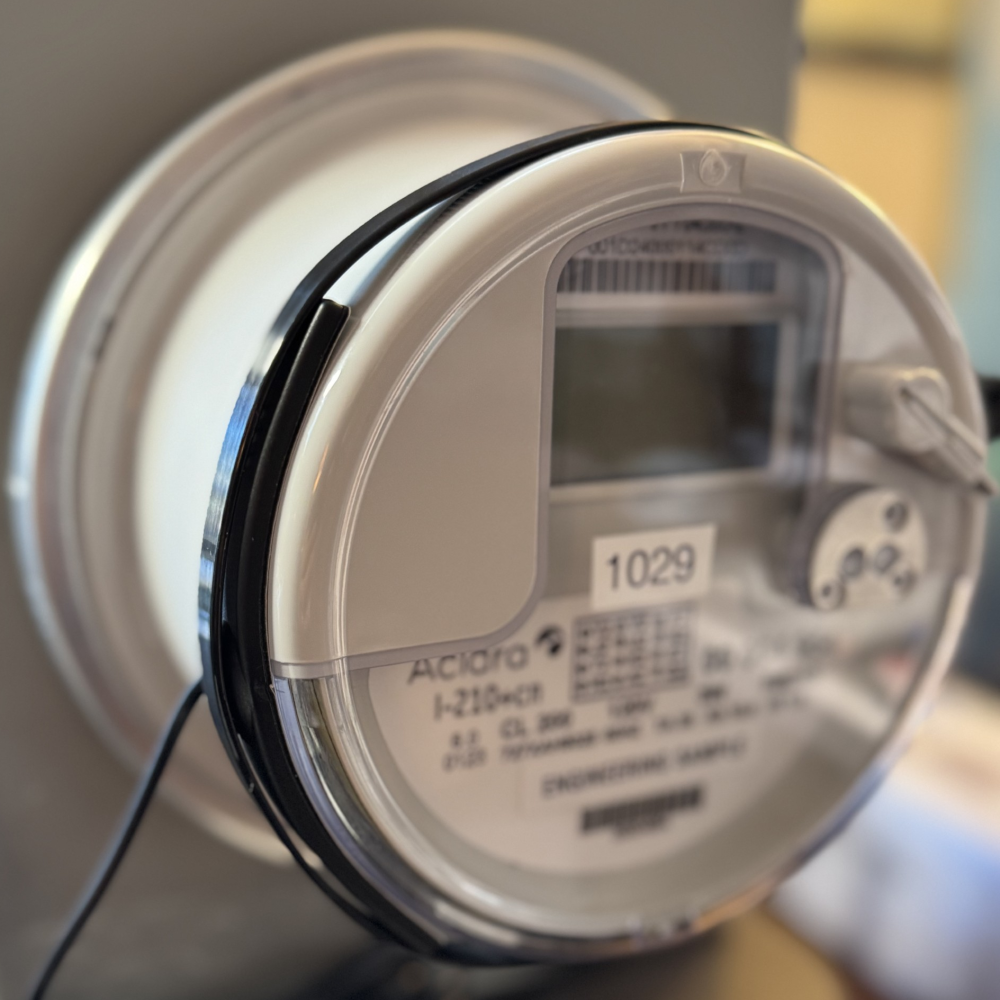

The Antenna Company AC91007-01 Field Installable Universal External Antenna Extender Kit includes everything needed to quickly retrofit smart meters in the field, including the self-adhesive-backed fix-up antenna, which adheres to the outside of the smart meter and is secured with a provided 10-inch zip tie, and a high-gain external antenna with mounting accessories, AC94541-01NA. The N-type plug to N-type plug cable connecting the AC94541-01NA antenna to the fix-up antenna is not supplied because of the variability of installation scenarios.
The kit is compatible with many types of residential and commercial & industrial (C&I) ANSI and IEC form-factor smart utility meters that contain an internal under-the-glass wireless modem on the network interface card (NIC), and an internal antenna.
Categories: Antenna Accessories, Cellular, Specialty Antennas
Tags: 4G, Cat-M1, Fix-up antenna, IP-Rated, IP67, LTE-M, Range Extension, Smart Energy, Smart Meter
Features
- Univeral range extension for internal-antenna smart meters
- Covers frequencies from 698 to 2.7 GHz
- Compatible with most ANSI and IEC form smart utility meters
- Easy to install
- No need to open the smart meter
- Range extension for indoor- and outdoor-mounted meters
Applications
- Smart meter range extension for
- Public and Private LTE
- 900 MHz cellular
- 2.4 GHz networks
