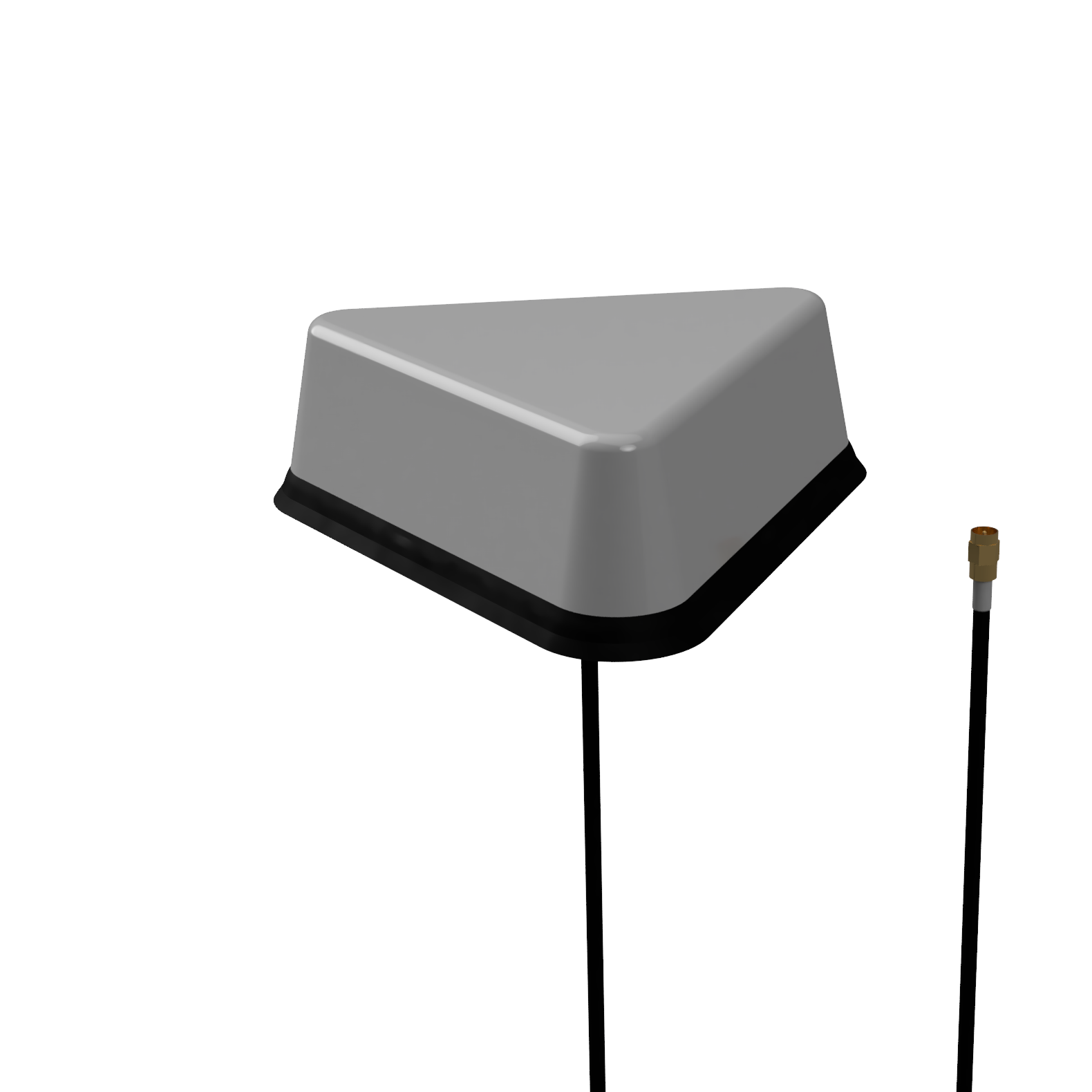

Low-Profile Ruggedized Multiband Cellular Antenna
AC94500-100
The AC94500-100 is a low-profile ruggedized cellular antenna. With its unique triangular product ID, the antenna has been designed to blend well into utility infrastructure, minimize maintenance and provide deterrence against vandalism.
The AC94500-100Â is intended for customers deploying infrastructure for smart utility applications: High-, medium- and low-voltage substations monitoring, Asset management, attack protection and self-healing grids, Power plants and industry
Categories: Cellular, External, Multiband Cellular, Panel Mount
Tags: 1m Coax, 4G, 5G, ABS, Cat-M1, Cellular IoT, Dome, Ground Plane Independent, Hemispherical, IK10, IP-Rated, IP67, LTE, LTE 450, LTE-M, NB-IoT, Omnidirectional, Plug (Male), Puck, SMA, UV Protection
Features
- Low profile and low visibility antenna with M18 threaded spigot for metallic surface mounting
- Excellent multiband coverage including 450-470MHz, 698-960MHz and 1700-2700MHz
- Optimized performance at 450MHz to 470MHz (efficiency up to 80%)
- Weatherized assembly for outdoor installation (IP67, IK10 and UV protection)
- Customized (optional) outdoor label for further reduced visibility
- Barely noticeable due to neutral light grey color
- RoHS and REACH compliant
